Headwall construction begins for Scarborough Subway Extension

Construction for a key part of the Scarborough subway, called a headwall, is now underway.

Apr 12, 2022

Scarborough’s three-stop subway extension continues to take shape with crews starting work on the project’s headwalls.

Headwalls are underground support structures made up of a series of concrete columns, called piles, that create a watertight wall around the area of future subway stations and emergency exit buildings.

Construction is now underway for the first headwall just south of the launch shaft site at Sheppard Avenue East and McCowan Road.

Similar to the ones installed at the launch shaft site last summer to prepare for excavation, piles will be drilled into the ground using large drill rigs, which are usually over 33 metres high.

Approximately 19 piles will be required for each headwall.

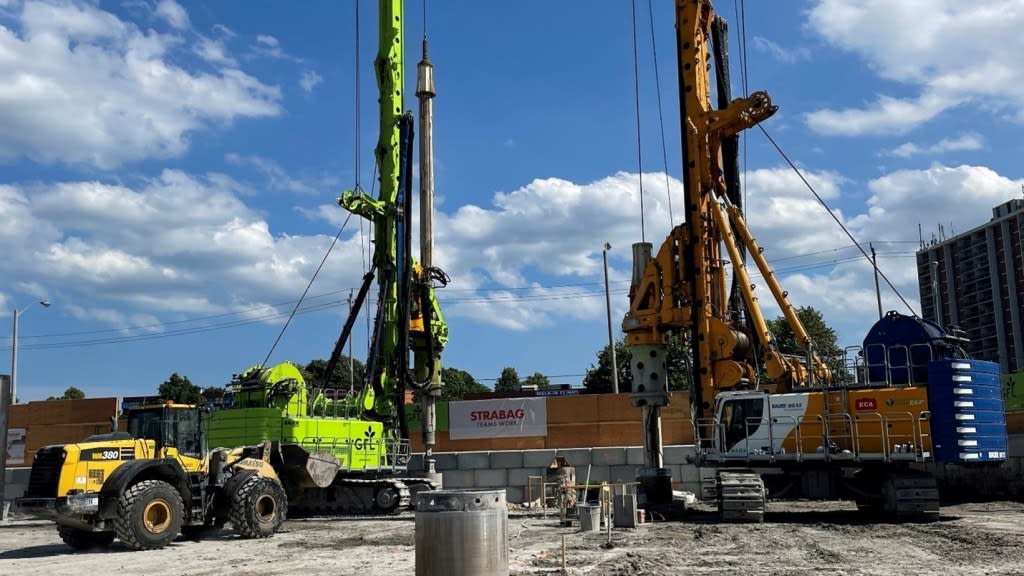

A drill rig used for piling at the launch shaft site last summer

A drill rig used for piling at the launch shaft site last summer (STRABAG photo)

“As the tunnel boring machine travels underground from the launch shaft site, it will bore through these headwalls, leaving behind the frames for stations and emergency exit buildings we’ll build later,” said Andrej Butala, headwall manager for the project.

Crews will build headwalls at twelve sites along the project route. All of them must be built before the project’s tunnel boring machine, Diggy Scardust, arrives at each location.

At each future station and emergency exit building site, crews will be installing a pair of headwalls to mark where the buildings will start and end. After the tunnel boring machine bores through these headwalls and tunnelling is completed, the successful stations, rail and systems (SRS) contractor will use the headwalls as frames to complete building the future stations and emergency exit buildings.

The headwalls need to go deeper than the future tunnels to ensure that water and soil don’t disrupt the area during tunnelling or construction.

Butala says each pile will be drilled roughly 40 metres underground and a single drill rig will be used at most sites to complete this work.

It will take crews roughly four to six months to build each headwall, and work will also involve utility relocations.

Crews preparing for construction at the first headwall site

Crews preparing for construction at the first headwall site (STRABAG photo)

Metrolinx will take a number of steps to keep the community informed before starting construction at each location, including holding meetings, distributing notices and putting up signage. Community members can also sign up to receive construction updates through the project’s newsletter and can review current and past updates at Metrolinx.com/scarboroughsubway.

Metrolinx’s dedicated community relations team is also available to answer any questions or concerns through the project’s 24/7 hotline at 416-202-7900 or through email at ScarboroughSubwayExtension@metrolinx.com.


by Joshua Patel Metrolinx communications senior advisor, subway program
